Nitto Ridge Grappler LT295/55R20 123/120Q E
Nitto Ridge Grappler LT295/55R20 123/120Q E
TIRE SPECS
Feature | Specification |
---|---|
Load Index / Speed Rating | 123/120Q (≤ 99 mph) |
Load Range / Ply Rating | E (10‑Ply) |
Tire Type | Hybrid AT/MT (All‑Terrain / Mud Terrain) |
Section Width | 295 mm (~11.64 in) |
Overall Diameter | 32.76 inches |
Overall Width (Inflated) | 12.17 inches |
Recommended Rim Width | 8.5–11 inches |
Tread Depth | 16.4/32″ (0.513 in) |
Maximum Load Capacity | 3,415 lb (single), 3,085 lb (dual) @ 80 psi |
Maximum Inflation Pressure | 80 psi |
Tire Weight | ~62.3 lb |
Sidewall Design | Black Sidewall (BSW); dual sidewall options |
Revolutions per Mile | 733 RPM/mile |
Variable Pitch Tread | Yes – for smoother ride and reduced noise |
Stone Ejectors | Integrated in tread grooves |
Staggered Shoulder Lugs | Yes – for enhanced off-road traction |
Warranty | Manufacturer mileage warranty; FREE 1 year road-hazard |
Share

TIRE INFO
The Nitto Ridge Grappler LT295/55R20 stands as a hallmark of modern tire engineering, seamlessly blending the aggressive capability of a mud-terrain tire with the comfort and quietness expected of an all-terrain design. Created for trucks, SUVs, and off-road-ready rigs, this hybrid terrain tire is a solution for drivers who need true versatility—rugged performance on dirt and rocks without sacrificing smoothness on pavement.

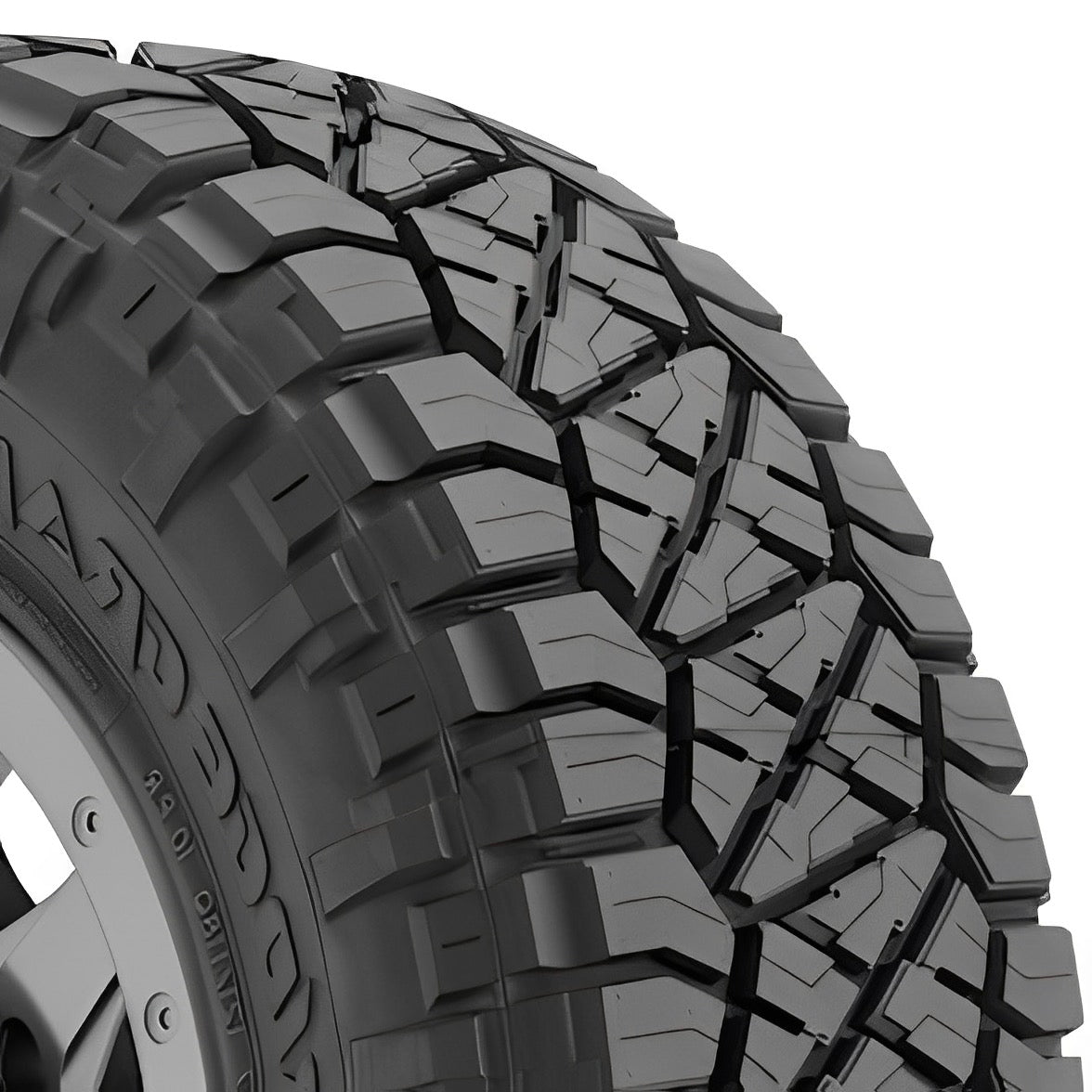

One of the Ridge Grappler’s defining features is its distinctive tread pattern, which combines large staggered shoulder lugs with lateral Z-shaped grooves and a variable pitch design. This hybrid setup gives it a dual personality: off the road, it bites into mud, gravel, and loose terrain with confidence, while on the road, it minimizes tread noise and maintains a steady, composed ride. For drivers who transition frequently between highways and harsh trails, the Ridge Grappler delivers consistent grip and ride quality across a wide range of conditions.
This particular size, LT295/55R20, is engineered with a Load Range E (10-ply rating), making it suitable for heavy-duty trucks and towing applications. It supports up to 3,415 pounds at 80 PSI, and its reinforced sidewall construction ensures stability under load and resistance to punctures—a must-have feature for those navigating rocky paths or hauling equipment. With a tread depth of 16.4/32", it offers extended life and improved off-road traction, while the robust two-ply polyester carcass and dual steel belts deliver strength without excessive weight.
Beyond performance, the Ridge Grappler is built with attention to detail. One of its most appreciated features is the dual sidewall design—one side showcasing a more traditional pattern, while the other displays a bold, aggressive look. This gives owners a chance to customize the tire’s appearance based on personal taste or vehicle style.
On pavement, the Ridge Grappler surprises many with its composed manners. It handles road imperfections with ease, and thanks to its variable pitch tread blocks, it runs quieter than many tires in its category. While it doesn’t carry the Three-Peak Mountain Snowflake (3PMSF) symbol, it performs capably in light snow, with wide grooves and biting edges that channel slush and water away from the contact patch.
In summary, the Nitto Ridge Grappler LT295/55R20 is an all-around performer that refuses to be confined to just one category. It brings together the best traits of all-terrain and mud-terrain tires into a single, balanced solution. Whether you're commuting on the freeway, towing a trailer, or crawling through trails and backcountry roads, the Ridge Grappler offers the durability, appearance, and reliability that demanding drivers expect.
