Nitto Nomad Grappler 275/55R20 117H XL

Nitto Nomad Grappler 275/55R20 117H XL

TIRE SPECS

Feature Specification
Load Index / Speed Rating 117H – up to 2,833 lb per tire, max speed 130 mph (210 km/h)
Load Range / Ply Rating XL (Extra Load)
Terrain / Season Crossover Terrain / All-Weather; 3PMSF rated
Overall Diameter (inflated) 31.9 inches (~31.89″)
Section Width 11.2 inches (~275 mm)
Tread Depth 13.2/32″ (~0.413″)
Max Load Capacity (single) 2,833 lb @ 50 psi
Max Inflation Pressure 50 psi
Tire Weight ~42.6 lb
Sidewall Design Black Sidewall (BSW); dual sidewall options
UTQG Rating 540 A A (Treadwear 540 / Traction A / Temperature A)
Warranty FREE 1 year road hazard
Winter Rating Three-Peak Mountain Snowflake (severe snow)
View full details

TIRE INFO

The Nitto Nomad Grappler 275/55R20 117H XL is a crossover-terrain tire engineered to bridge the gap between highway comfort and off-road capability. Designed specifically for modern crossovers, SUVs, and light trucks, it’s a tire that embraces versatility—making it an excellent option for drivers who need dependable year-round performance without sacrificing ride quality or style.

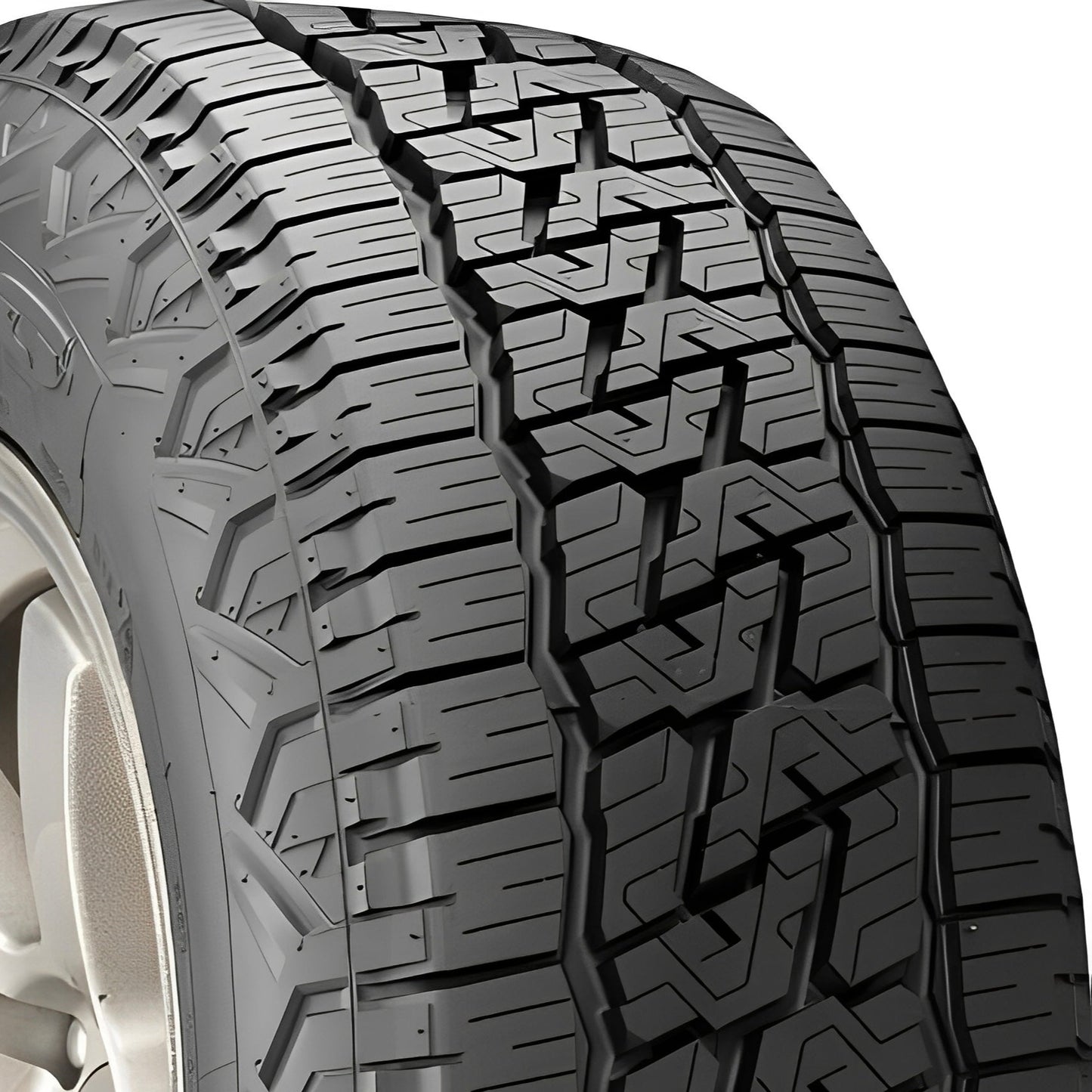

At its core, the Nomad Grappler represents Nitto’s innovative approach to all-terrain tire design. It features a bold, symmetrical tread pattern that delivers consistent surface contact, ensuring even treadwear and solid stability on pavement. But it doesn’t stop there. This tire is built to handle varied terrain—gravel, dirt, light mud, and even snow. With its aggressive shoulder blocks and deep tread depth of 13.2/32", it offers reliable traction in off-road conditions while maintaining the smooth, quiet ride expected on the highway.

What makes the Nomad Grappler particularly stand out is its Three-Peak Mountain Snowflake (3PMSF) certification—meaning it meets the industry’s standards for severe snow service. This makes it a true four-season tire, capable of performing not only in dry and wet conditions but also during the winter months when traction becomes crucial. This is especially beneficial for drivers who live in regions with changing climates but don’t want the inconvenience of switching between seasonal tires.

In terms of specifications, the tire is rated at 117H, capable of supporting up to 2,833 lbs per tire and handling speeds up to 130 mph (210 km/h). It’s an Extra Load (XL) tire, meaning it’s built with reinforced construction to support heavier vehicles or those frequently loaded with passengers and gear. The UTQG rating of 540 A A suggests strong treadwear performance, dependable traction, and excellent temperature resistance. Combined with a 60,000-mile treadwear warranty, the Nomad Grappler offers peace of mind for the long haul.

Despite its rugged build, the Nomad Grappler doesn’t compromise on comfort. Thanks to its variable pitch tread block arrangement, road noise is kept to a minimum—allowing for a smooth, pleasant driving experience even on extended highway trips. It weighs approximately 42.6 pounds and has a maximum air pressure of 50 PSI, offering strength without becoming overly stiff or heavy.

Visually, the tire’s design also adds to the appeal of any vehicle it’s mounted on, with its clean sidewall and all-terrain stance giving it a sporty, adventure-ready look. Whether you’re commuting through the city or escaping to the mountains, the Nomad Grappler delivers a confident, adaptable driving experience.

In conclusion, the Nitto Nomad Grappler 275/55R20 117H XL is a thoughtfully designed all-terrain tire that delivers dependable performance across all seasons and driving conditions. It’s ideal for drivers who want the flexibility of off-road readiness combined with the civility of a highway tire. Balancing durability, safety, and comfort, it stands as a smart and stylish choice for today’s multi-purpose vehicles.
